Security detector for revolving doors - surface-mounted
REF. : 02.0808 00000-0008
Surface-mounted VERSION
Security detector for revolving doors

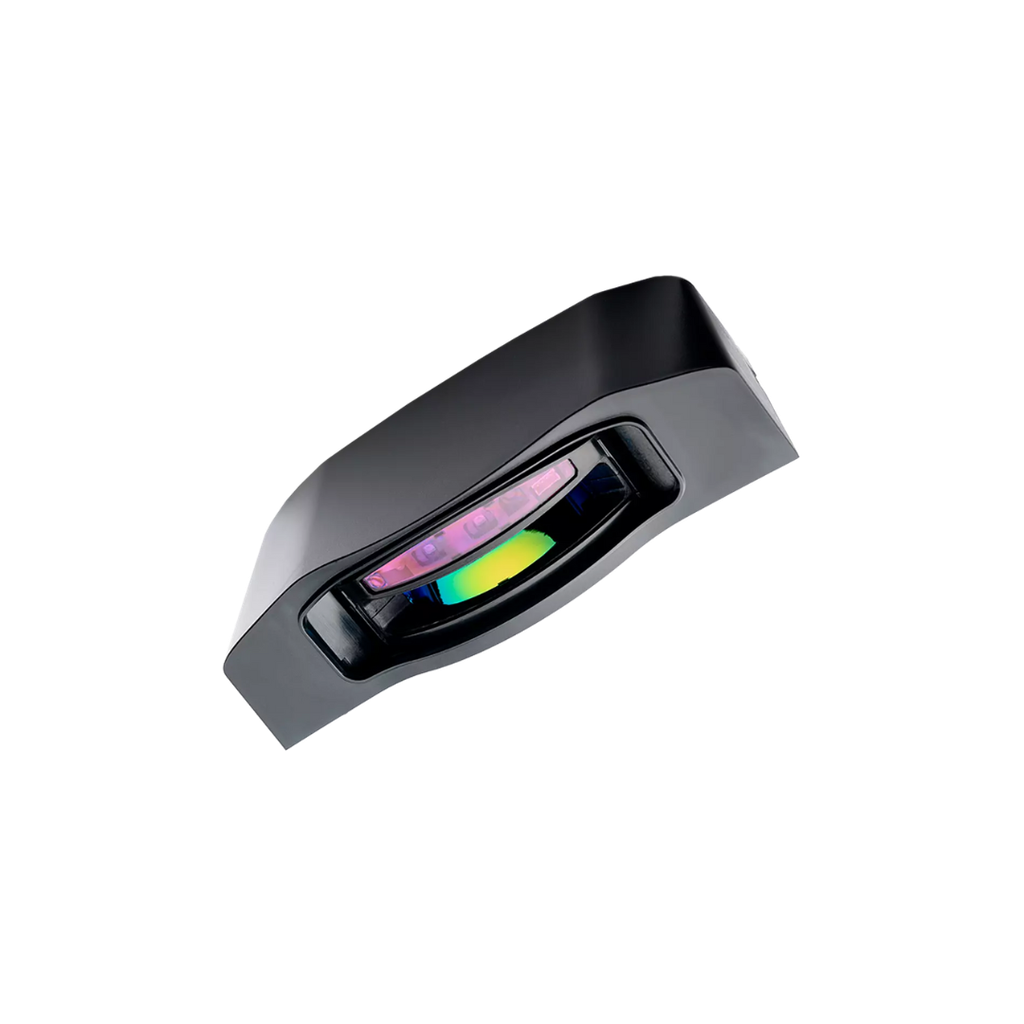

The LZR®-FLATSCAN REV PZ is the first security detector specifically designed for automatic revolving doors. It uses time-of-flight laser measurement technology and generates 400 measurement points to provide total protection for the user while ensuring the proper functioning of the door.
Independent of the floor and environment
The laser technology ensures great stability regardless of the nature of the floor (grating, absorbent carpet, reflective floors, wet floors, etc.) and weather conditions.
Quick and intuitive installation

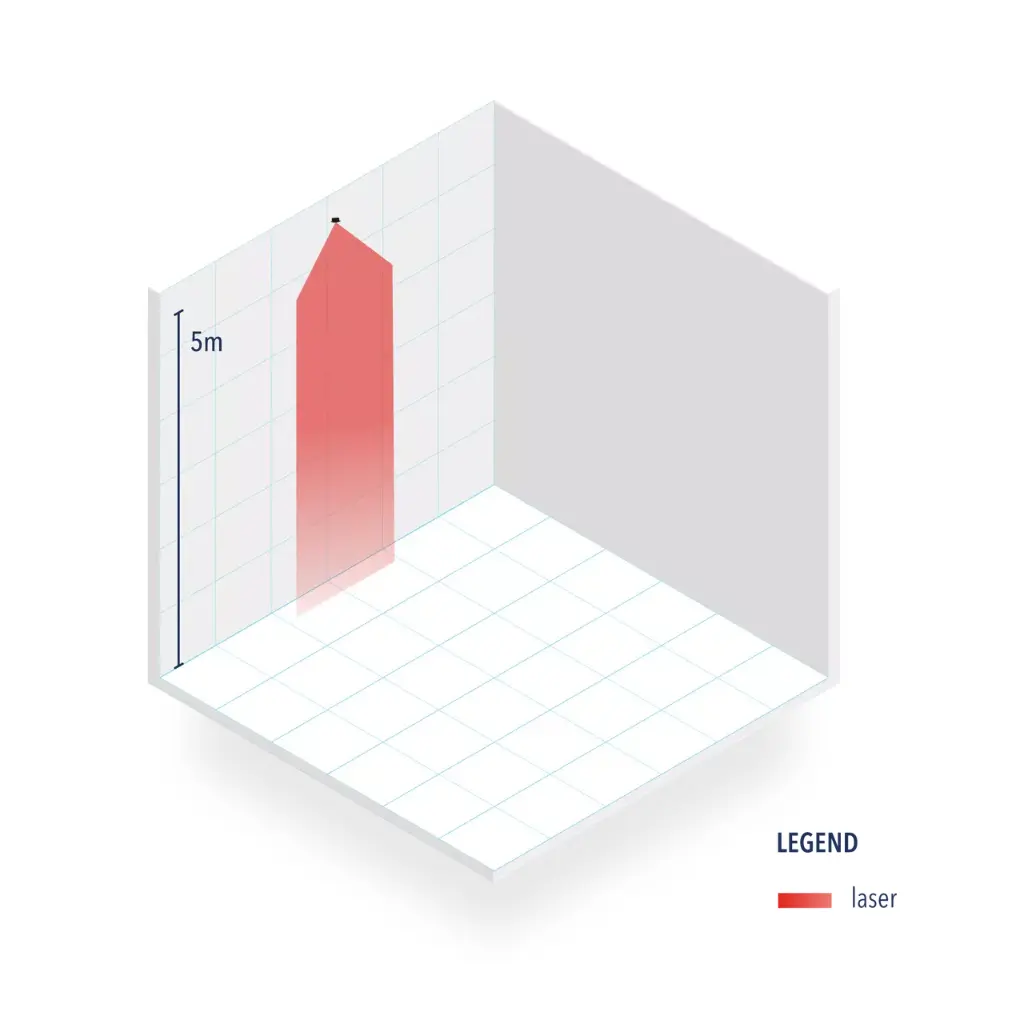

The size of the detection field is defined in two simple hand movements. The height and width of the area are calculated automatically.
Visual aids
It is possible to activate two visible red spots during installation to adjust the position of the detection field.
Two zones
If necessary, two zones can be assigned to different outputs to offer different functions (e.g. slow down and stop).
